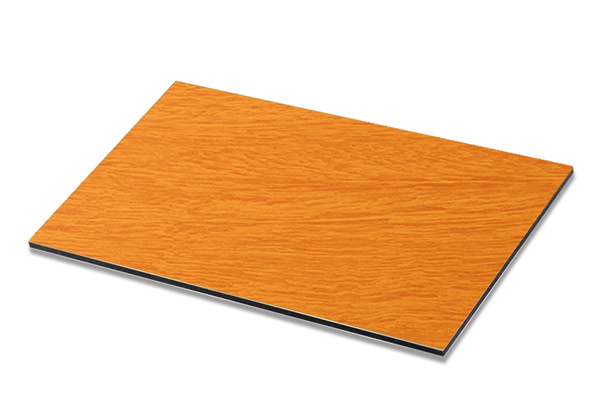

SJ-T2 Timber Aluminum Composite Panel
- Tel:+86-577-62999101
- Fax:+86-577-62999102
- Email:info@alusignpanel.com info@ybond.com.cn
- Whatsapp:+86-18019085530
Raw MaterialsAluminum base material: high strength aluminum alloy sheet Core: non-toxic low-density polyethylene(LDPE) or Fire-resistant (FR) core Surface: Timber & Stone finish |
|
Specification
|
Width |
1220mm, 1250mm, 1500mm |
|
Length |
Any size, recommend 2440mm, 3050mm, 4050mm |
|
Panel Thickness |
2mm~ 6mm, recommend 3mm |
|
Alu.Skin Thickness |
0.10mm~0.50mm, recommend 0.15mm,0.21mm,0.30mm |
|
Standard Size |
1220mm x 2440mm (4' x 8'); 1500mm x 3050mm (5' x 10') |
|
Others |
Accept custom size and colors too |
Dimensional Tolerances
|
Thickness |
±0.20 mm |
|
Aluminum thickness |
±0.02 mm |
|
Width |
±2.0 mm |
|
Length |
±3.0 mm |
|
Diagonal |
±5.0 mm |
|
Thermal Expansion |
2.40 mm/m@100℃Temp difference |
-
